Спецификации
- СерияPrime
- ПроцесорIntel 1851
- ЧипсетIntel® B860 Chipset
- BIOS2 x 128 Mb Flash ROM, UEFI AMI BIOS
- Памет4 x DIMM slots, max. 256GB, DDR5;Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III (AEMP III)
- Брой слотове4 DIMM Slots, Max. capacity of system memory: 256GB
- АудиоRealtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers
- Безжична мрежаWi-Fi 6E
- КонекториFan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1pin);1 x 10-1 pin Front System Panel header;1 x Thunderbolt™ (USB4®) header
- СлотовеPCIe 5.0 x16 slot, 4 PCIe 4.0 x16 slots
- M.2 слот2 M.2 slots (Key M)

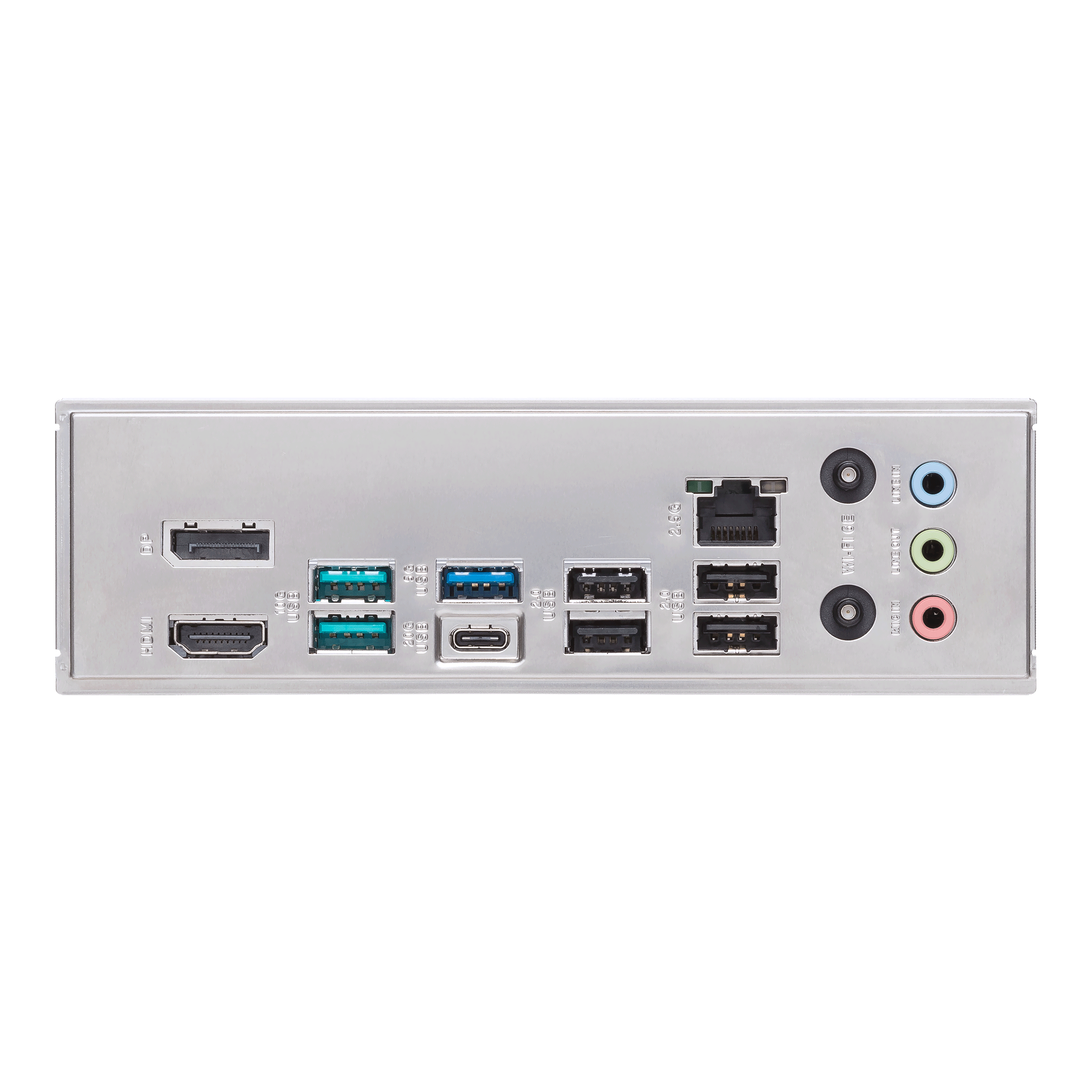

- ИнтерфейсUSB 20Gbps, 2 USB 10Gbps, USB 5Gbps, 4 USB 2.0, DisplayPort, HDMI, Realtek 2.5Gb Ethernet port, 3 Audio jacks
- СофтуерWindows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
- Операционна системаindows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
- Форм-факторATX Form Factor, 30.5 cm x 24.4 cm
- Специални функцииASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync
- Гаранция, м.36 Months
- Тегло, кг.1.097 кг.
