Спецификации

Серия
Prime
Процесор
AMD AM5 Ryzen
Чипсет
AMD X870 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Памет
4 x DIMM slots, max. 192GB, DDR5; Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)
Брой слотове
4 DIMM Slots, Max. capacity of system memory: 256GB
Аудио
Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers
Безжична мрежа
2x2 Wi-Fi 7 (802.11be)
Конектори
Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 4 x M.2 slots (Key M); 2 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header
Слотове
PCIe 5.0 x16 slot (supports x16 mode) (AMD Ryzen 9000 & 7000 Series Desktop Processors), PCIe 4.0 x16 slot (supports x8/x4 mode) (AMD Ryzen 8000 Series Desktop Processors)
M.2 слот
4 M.2 slots (Key M)
Интерфейс

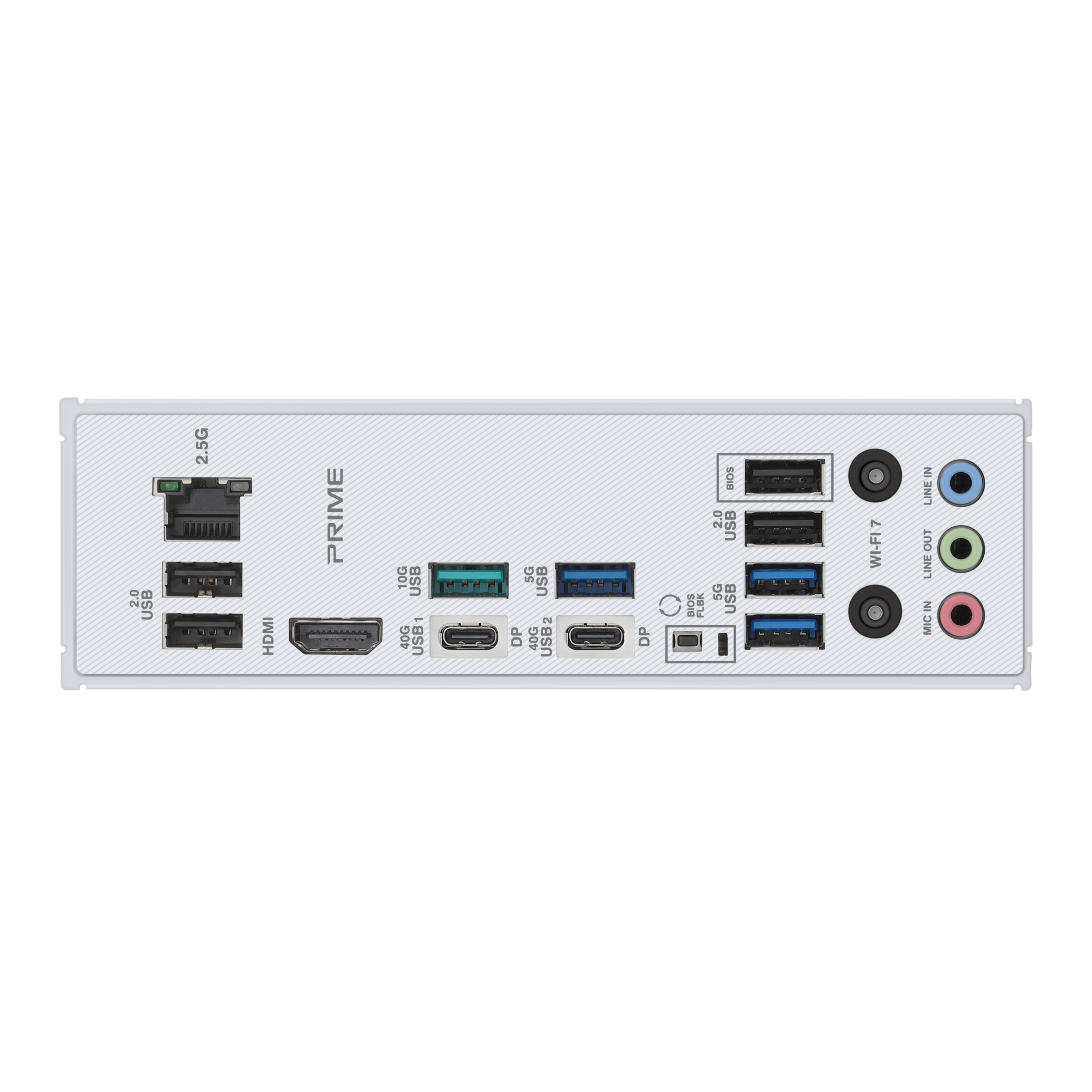

2 USB4 (40Gbps), USB (10Gbps), 3 USB (5Gbps), 4 USB 2.0, HDMI, 3 Audio jacks
Софтуер
Windows 11
Операционна система
Windows 11
Форм-фактор
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Специални функции
ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync
Гаранция, м.
36 Months
Тегло, кг.
1.6 кг.
