Спецификации
- ЧипсетAMD X870
- BIOS1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- ПаметSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE`s website for more information.)
- АудиоRealtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out

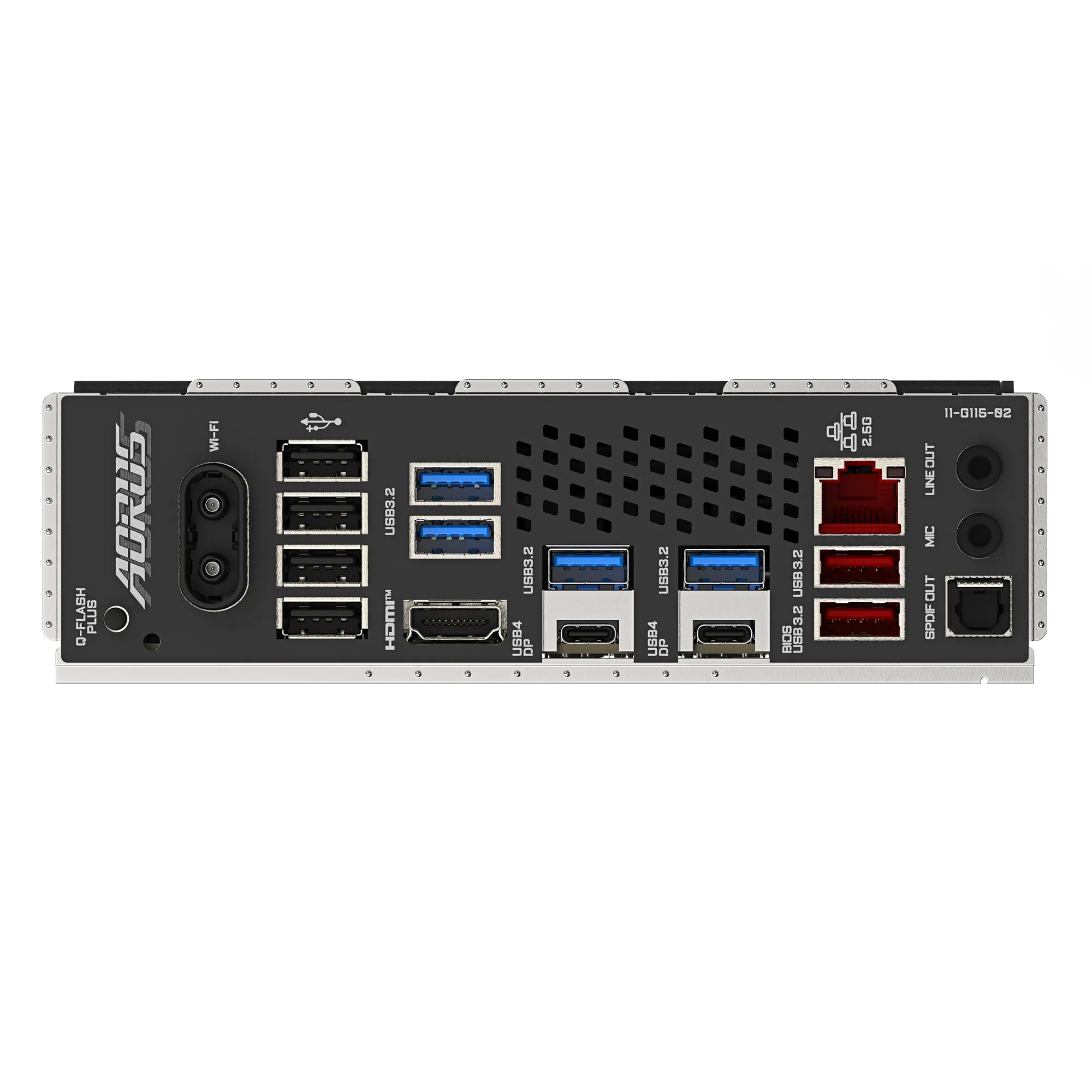

- КонекториInternal I/O Connectors;-1 x 24-pin ATX main power connector;-2 x 8-pin ATX 12V power connectors;-1 x CPU fan header;-1 x CPU fan/water cooling pump header;-4 x system fan headers;-2 x system fan/water cooling pump headers;-3 x addressable RGB Gen2 LED strip headers;-1 x RGB LED strip header;-4 x M.2 Socket 3 connectors;-4 x SATA 6Gb/s connectors;-1 x front panel header;-1 x front panel audio header;-1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;-1 x USB 3.2 Gen 1 header;-2 x USB 2.0/1.1 headers;-1 x noise detection header;-1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);-1 x HDMI port (Note);-1 x power button;-1 x reset button;-2 x temperature sensor headers;-1 x reset jumper;-1 x Clear CMOS jumper;Back Panel Connectors;-1 x Q-Flash Plus button;-1 x HDMI port (Note);-2 x antenna connectors (2T2R);-2 x USB4® USB Type-C® ports (DisplayPort (Note));-2 x USB 3.2 Gen 2 Type-A ports (red);-4 x USB 3.2 Gen 1 ports;-4 x USB 2.0/1.1 ports;-1 x RJ-45 po
- СофтуерSupport for Windows 11 64-bit
- Форм-фактор\t ATX Form Factor; 30.5cm x 24.4cm
- Гаранция, м.36 Months
