Спецификации

Чипсет
AMD X870
BIOS
1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Памет
Support for DDR5;8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Аудио
Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Конектори

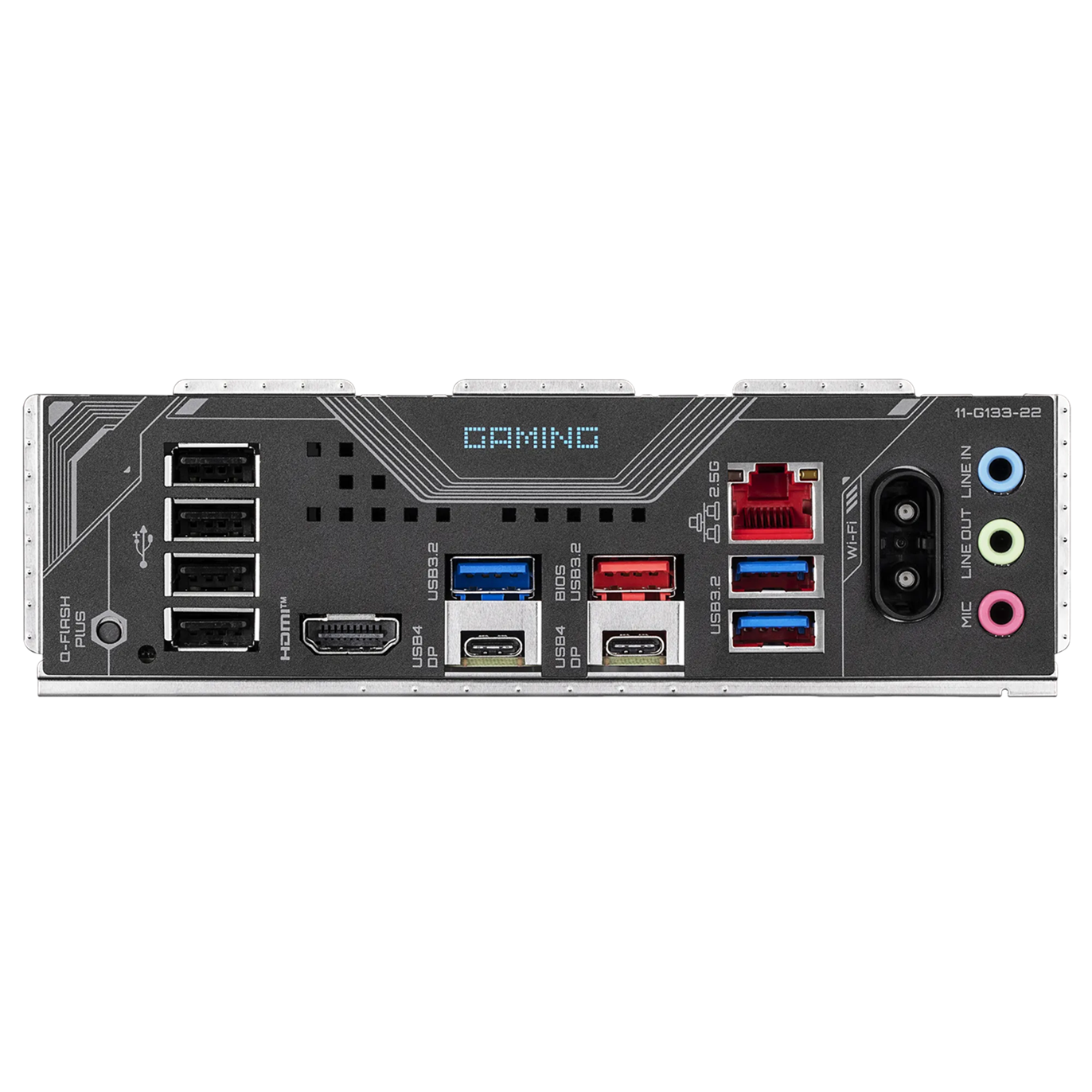

Internal I/O Connectors;-1 x 24-pin ATX main power connector;-1 x 8-pin ATX 12V power connector;-1 x 4-pin ATX 12V power connector;-1 x CPU fan header;-1 x CPU fan/water cooling pump header;-4 x system fan headers;-3 x addressable RGB Gen2 LED strip headers;-1 x RGB LED strip header;-4 x SATA 6Gb/s connectors;-3 x M.2 Socket 3 connectors;-1 x front panel header;-1 x front panel audio header;-1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;-1 x USB 3.2 Gen 1 header;-4 x USB 2.0/1.1 headers;-1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);-1 x reset jumper;-1 x Clear CMOS jumper;Back Panel Connectors;-1 x Q-Flash Plus button;-2 x SMA antenna connectors (2T2R);-1 x HDMI port (Note);-2 x USB4® USB Type-C® ports (DisplayPort (Note));-1 x USB 3.2 Gen 2 Type-A port (red);-3 x USB 3.2 Gen 1 ports;-4 x USB 2.0/1.1 ports;-1 x RJ-45 port;-3 x audio jacks;(Note) Actual support may vary by CPU.
Софтуер
Support for Windows 11 64-bit;Support for Windows 10 64-bit
Форм-фактор
ATX Form Factor; 30.5cm x 24.4cm
Гаранция, м.
36 Months
