Спецификации

Чипсет
INTEL B760
BIOS
1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language
Памет
4x DDR4, Maximum Memory Capacity 128GB; Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC); (4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC); (3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC); (2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP);
Аудио
Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output;

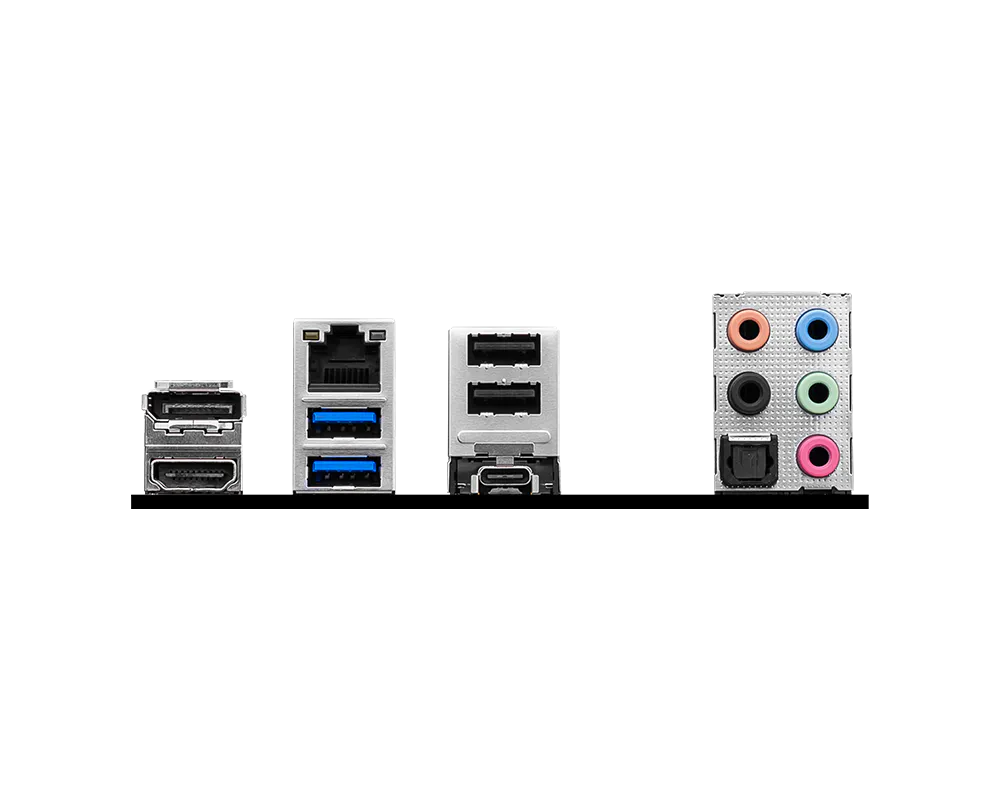

Конектори
•1x Front panel audio connector •2x System panel connectors; •1x Chassis Intrusion connector •1x TPM module connector; •1x Serial port connector •1x TBT connector (Supports RTD3);•1x 4-pin CPU fan connector ; •1x 4-pin water-pump fan connector; •5x 4-pin system fan connectors;
Софтуер
Support for Windows® 11 64-bit, Windows® 10 64-bit
Форм-фактор
ATX Form Factor •9.6 in. x 12 in. (244 mm x 304 mm)
