Спецификации
- ЧипсетAMD X870E
- BIOS1 x 512 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- ПаметSupport for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
- АудиоRealtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio.;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out

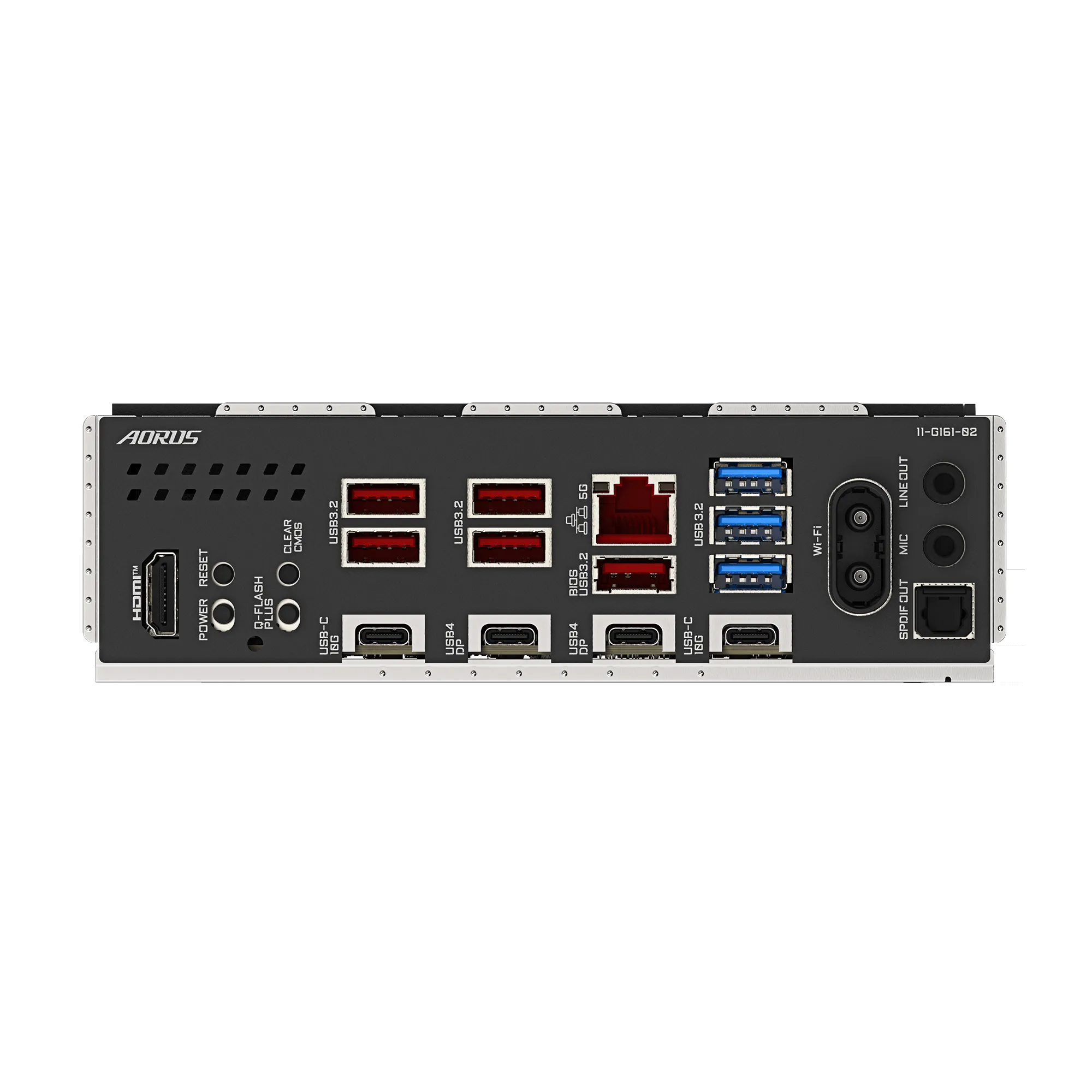

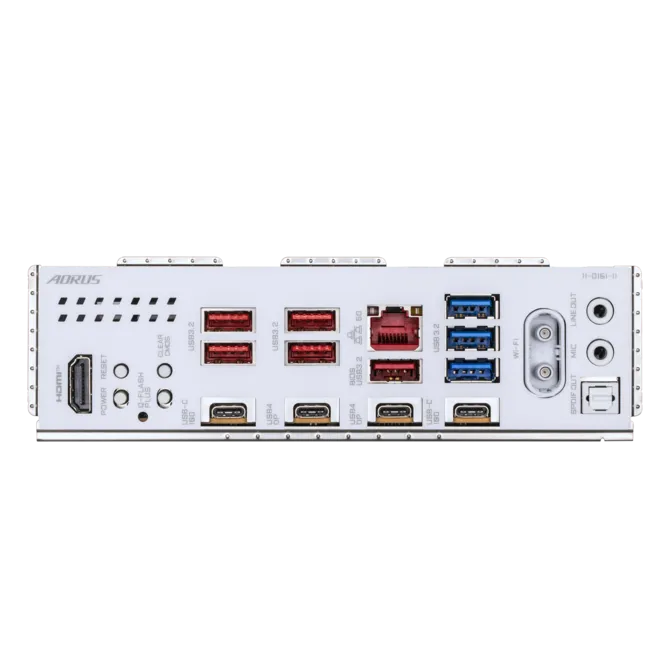

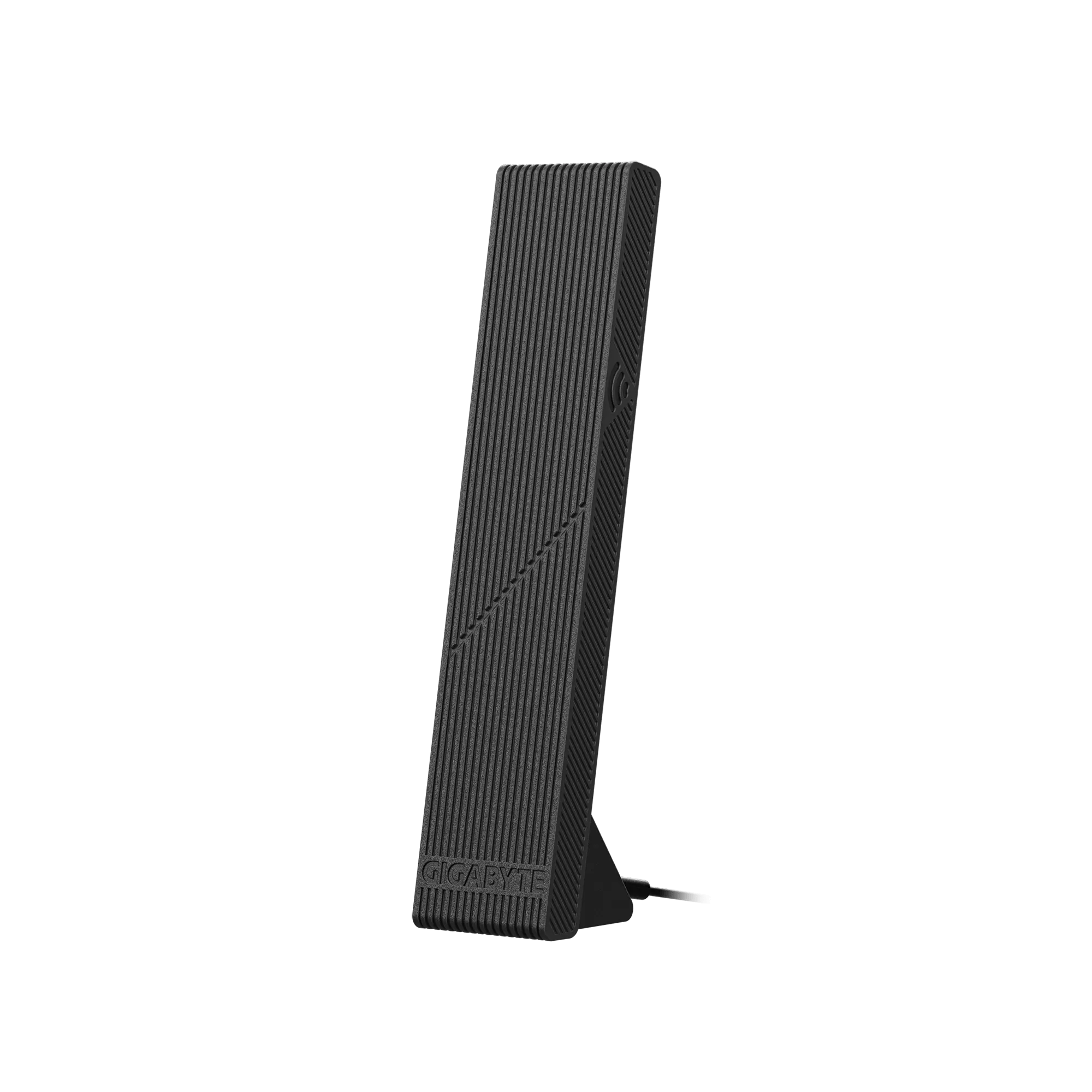

- Конектори1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x PCIe power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;4 x system fan headers;2 x system fan/water cooling pump headers;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;4 x SATA 6Gb/s connectors;4 x M.2 Socket 3 connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;2 x USB 3.2 Gen 1 headers;2 x USB 2.0/1.1 headers;1 x noise detection header;1 x HDMI port (Note);1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);2 x temperature sensor headers;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x HDMI port (Note);1 x reset button;1 x power button;1 x Clear CMOS button;1 x Q-Flash Plus button;5 x USB 3.2 Gen 2 Type-A ports (red);2 x USB Type-C® ports, with USB 3.2 Gen 2 support;2 x USB4® USB Type-C® ports (DisplayPort (Note));1 x RJ-45 port;3 x USB 3.2 Gen 1 ports;2 x antenna connectors (2T2R);2 x audi
- СофтуерSupport for Windows 11 64-bit
- Форм-факторATX Form Factor; 30.5cm x 24.4cm
- Гаранция, м.36 Months
